Carputech 360 degree panoramic view HD 1080P AI Intelligent Object Recognition Reminder 3D Bird Eye View Car Camera System

Due to express delivery requirements, please provide your tax number when placing an order. Without a tax number, customs clearance may not be possible

Digital HD AI 3D 360 Bird Eye View Camera System

Product parameters:

1、AI Intelligent Recognition Of Pedestrians And Vehicles
2、Display Distance And Direction Of Movement From Other Vehicles And Pedestrians
3、AI Intelligence Alerts Through Color Changes And Sound

4、3.5D\3D\ 2D Multiple View Display
5、Multiple Styles 3D Car Model Image Available
6、4 way video recording and playback, 4-in-1 High-definition Video Real-time Recording
7、Record Video Files Using H.265 Compression Format

8、Support AHD, TVI, CVI, HDMI, VGA, And CVBS Video Output,easy change in menu. The original car display screen supports one of the above, which can be connected.
9、Parking Recording Mode With Intelligent Voltage Detection
10、Voltage support:DC9-30V
11、OSD language: Chinese, Korean, English，Russian

Importance :Our 360 System not including Monitor

Purchase Notice

1.This system support Vehicles within 6 meters.you might need to buy

Extra extension cable for the rearview camera if over 6 meters.

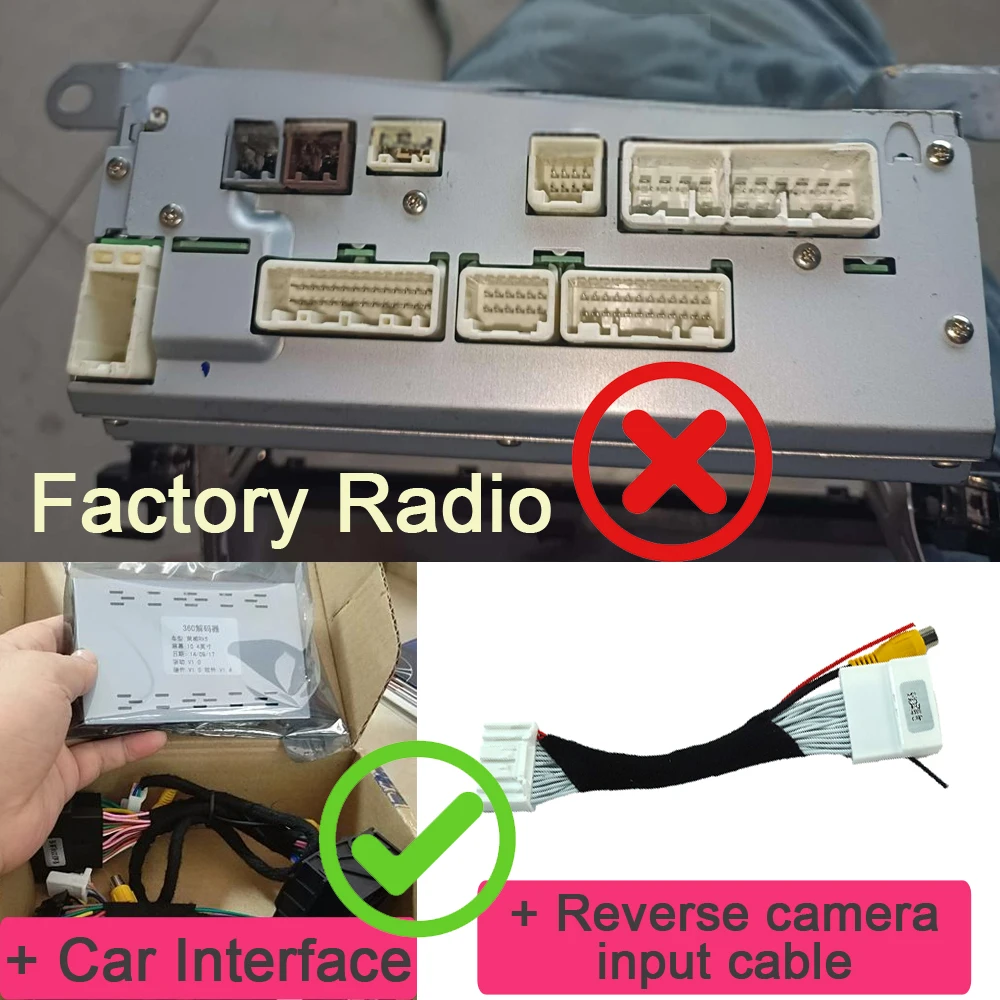

2.Please check if your monitor with RCA video input or not .Our 360 System Support CVBS/AHD/TVI,HDMI signal output .if you using car factory radio .normally it need to add car interface .or buy a reverse camera input cable for (your car brand)

3.Aftermarket radio or monitor is works well for our 360 camera system.if the monitor support AHD input .that will be more HD quality

4.This system need to drilling hole at your side view mirror,please be sure you can accept that .the camera is universal .it can be install for most of car

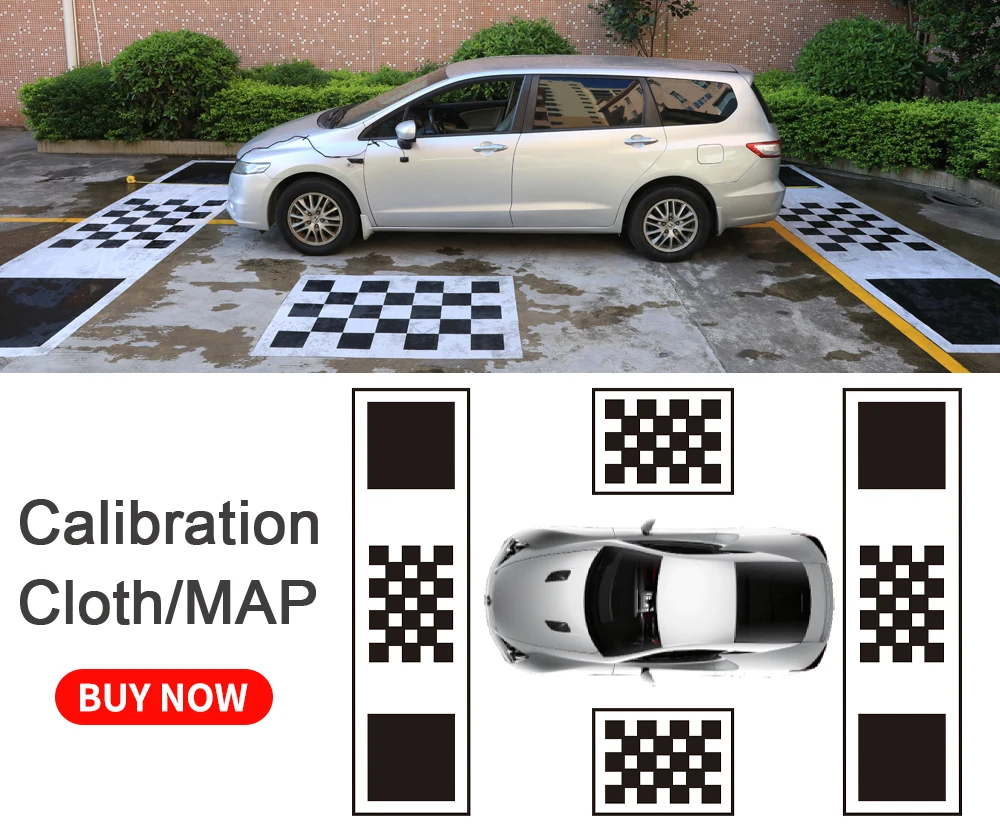

5.The calibration cloth need to buy alone . If the installation shop have this one .then you not need to buy to save the cost .（Click on the image）

6.Our store has a 10.25 touch screen AHD monitor with a resolution of 1920 * 720P, which is perfectly compatible with this panoramic and supports touch function to control 360 camera system . you can choose to purchase it If needed.（Click on the image）

Main feature:

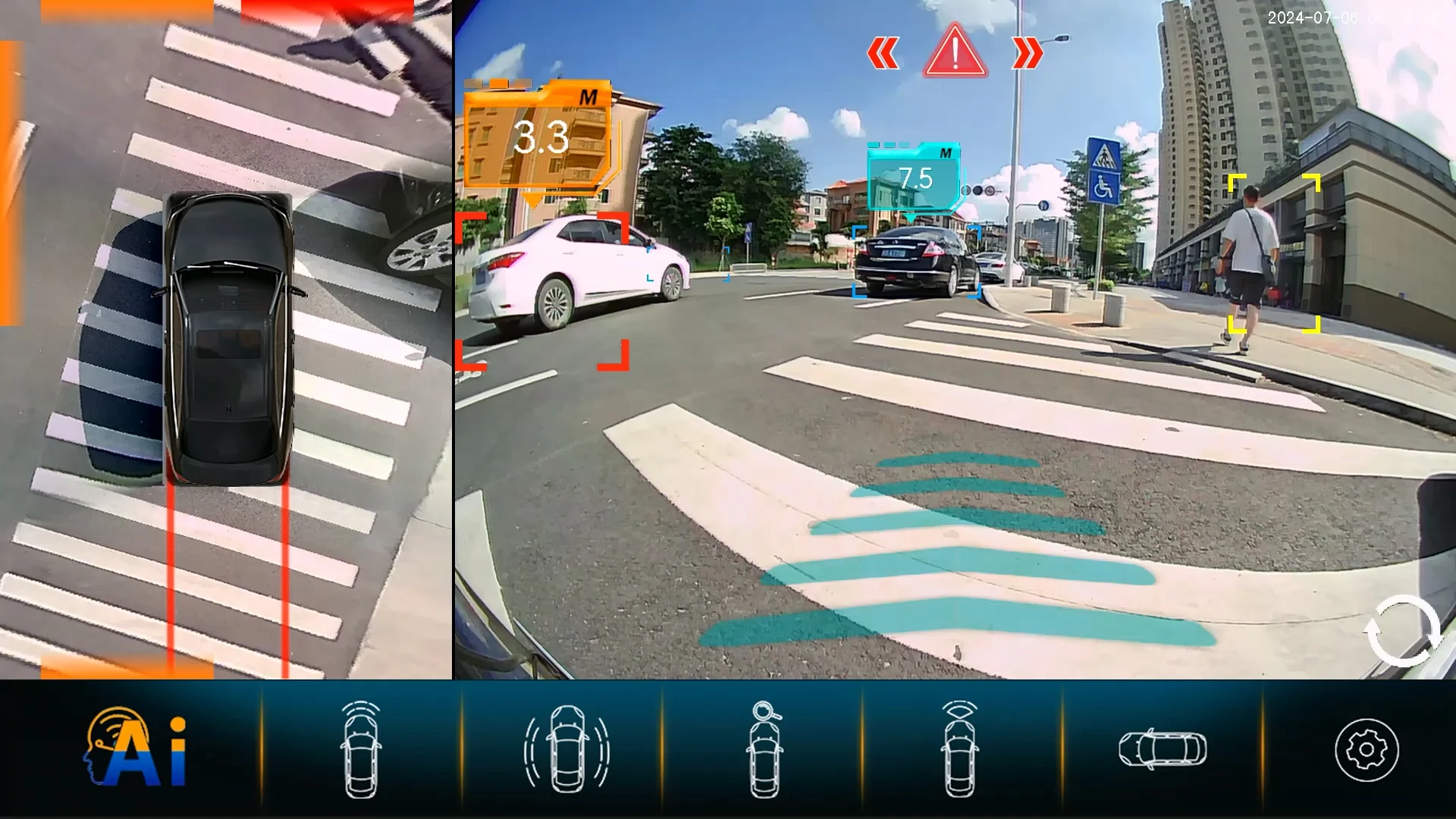

1.AI Intelligent Recognition Of Pedestrians And Vehicles

On the left side of the interface, different colors are used to indicate the direction of objects and their distance from the camera, The right interface displays the specific distance between a single camera and an object

The default state is that all four cameras are equipped with AI function.

If you need to enable some of them, you can make the following settings

2.Automatic switch view while driving the car

When the car is turning left, right, reversing, or moving forward, corresponding camera images are provided to assist you in driving and prevent accidents from happening

①Car turning left,the 360 view as below

②Car turning right,the 360 view as below

③Car reverse,the 360 view as below

④ Car forward,the 360 view as below

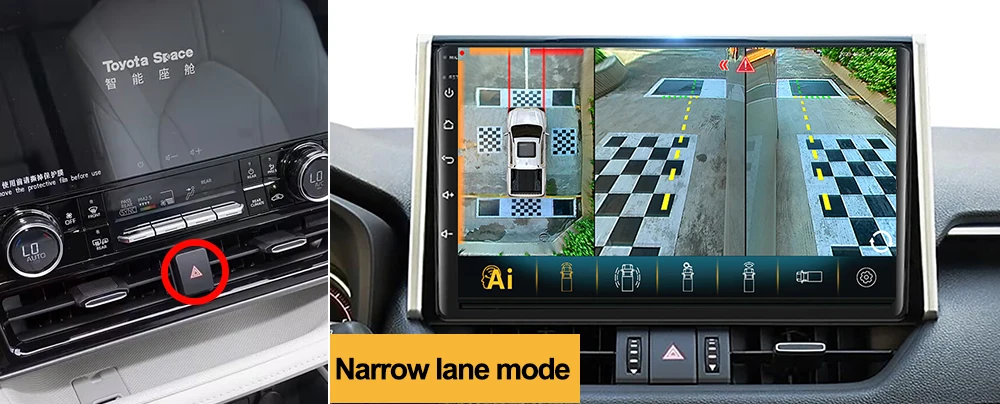

⑤When double clicking on the car emergency light，display left and right 2D view

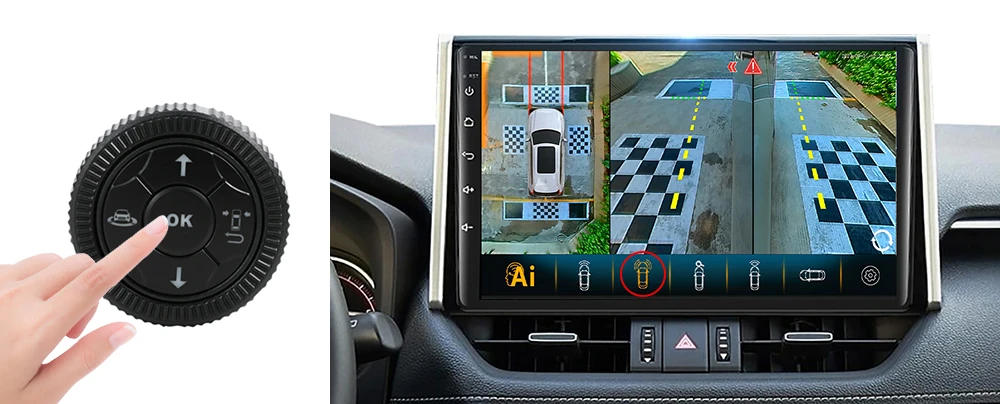

2.1 Knob remote control to switch viewing angles

You can also switch view by the remote control

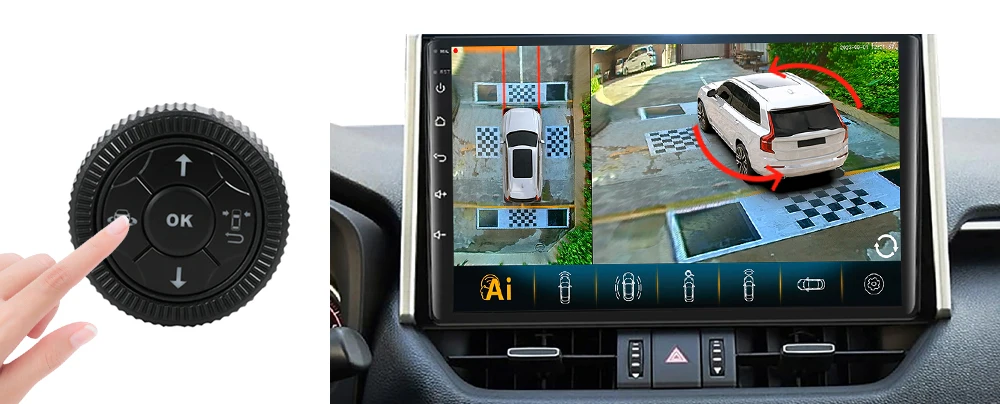

Press this button ,the Car image will 360 degree view rotates once

Rotating the knob switch can switch between different views

The OK button can switch the secondary viewing angle

Press this button to quickly enter the limited width view

By entering the menu settings through the remote control, more perspectives can be set, such as 2D, 3D, 3.5D perspective, and rever

3.Buil-in DVR function

We adopt H.265 as the new generation video compression standard
which can record up to 87 hours of video (when connected to a 128GB USB storage card)，The following are video screenshots of USB storage card playback on the computer at 12:30 and 20:30 respectively，The pixel of video is 1920*1080. We won't lie and say this is a 4K resolution

4. Support multiple signal formats for output

Our host support CVBS/AHD 720P/AHD 1080P/TVI/HDMI/(VGA for car interface) video output. The corresponding output signal can be set through the dip switch, In addition, our connector is designed with a waterproof lock buckle,which is more sturdy and durable

5. Good product performance comes from product details

The camera housings on the front, back, left, and right sides are all made of metal, which provides better heat dissipation and durability

6.DV600AI 360 AI camera system packing including:

（1）360 host x1
（2）Front&rear cameras x1
（3）Left&right cameras x1
（4）Wireless remote x1 （CR2032 Battery not including）
（5）Main cable x1
（6）Power cable x1
（7）Front camera 3.5M extension cable x1 （8）Rear camera 7M extension cable x1
（9）Right camera 3.5M extension cable x1 （10）Left camera 3.5M extension cable x1 （11）Side camera (car door) 0.5M extension cables x1
（12）Remote receiver x1
（13）RCA Video out cable x1
（14）Cameras mount tool x1
（15）User’s manual x1
（16）Calibration cloth is optional accessories

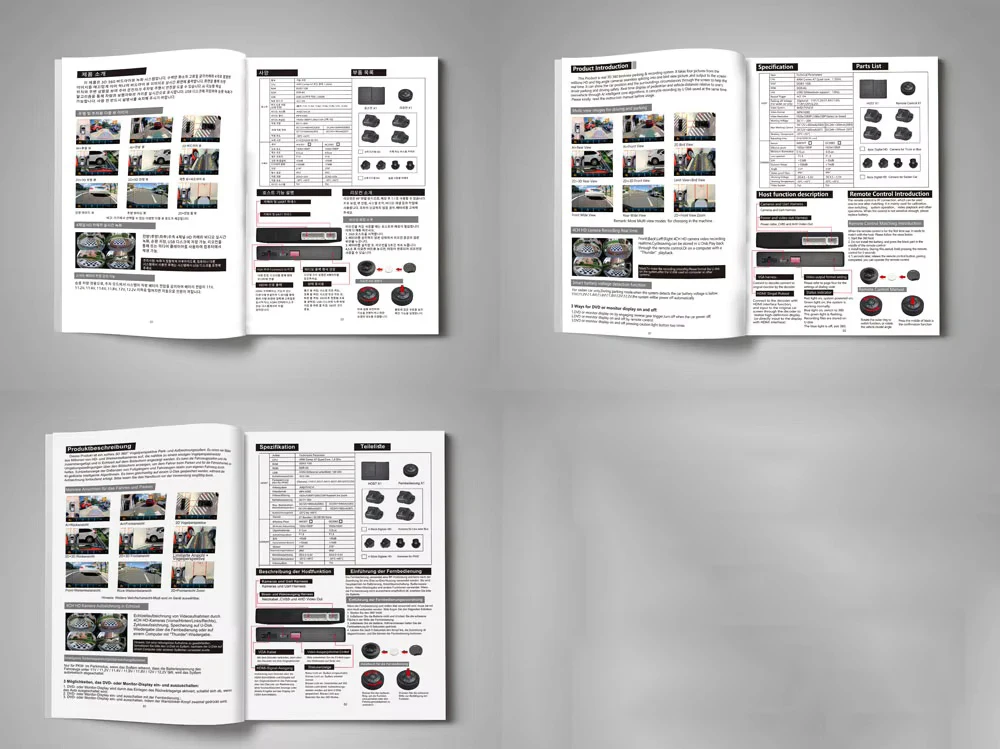

Multiple language user manuals are available for selection (Standard includes English manual) Korean, German instruction manual optional

7.Multiple car models to choose from and respond to timely professional services

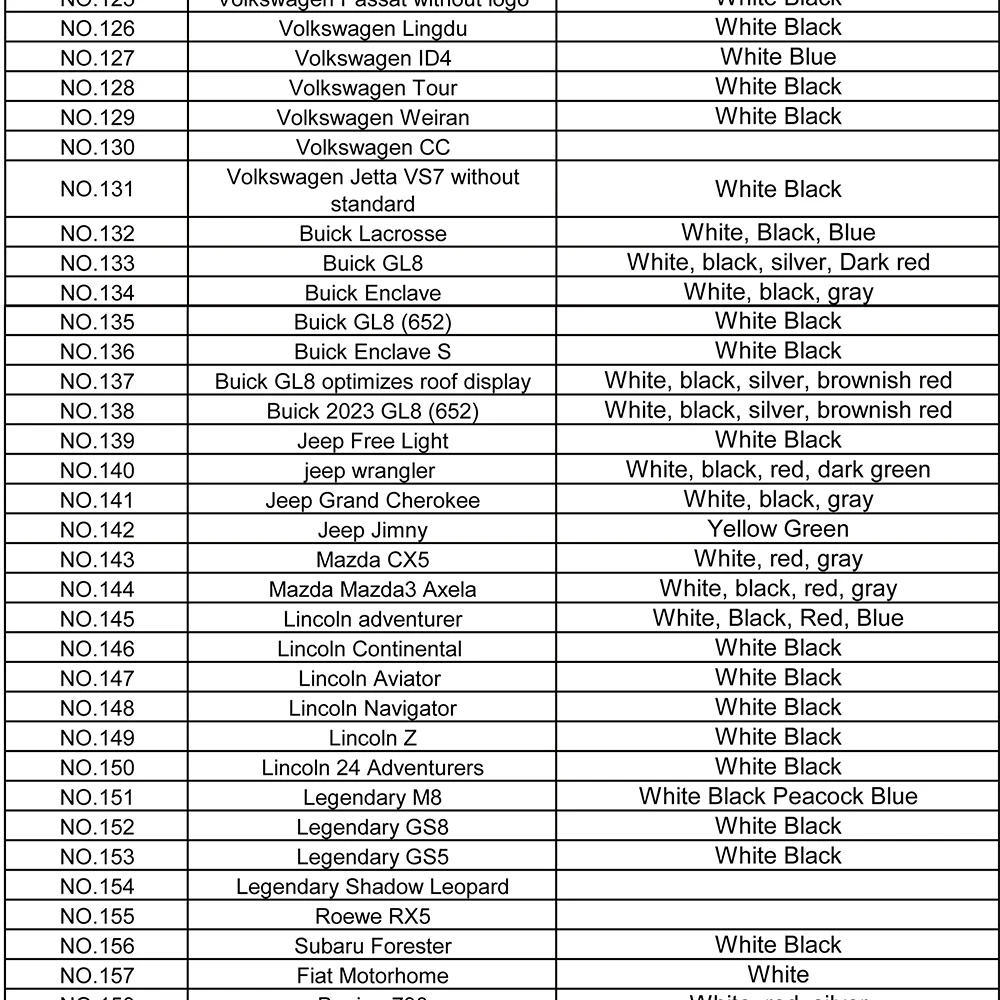

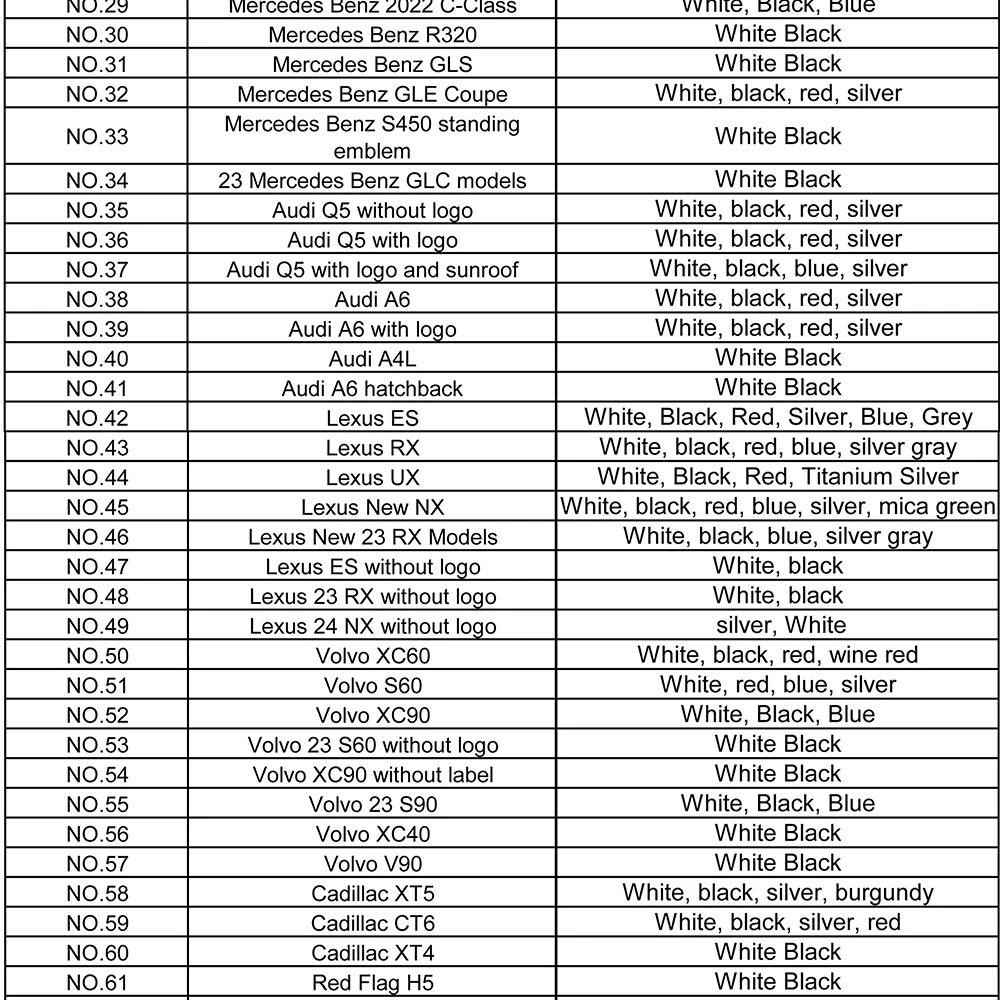

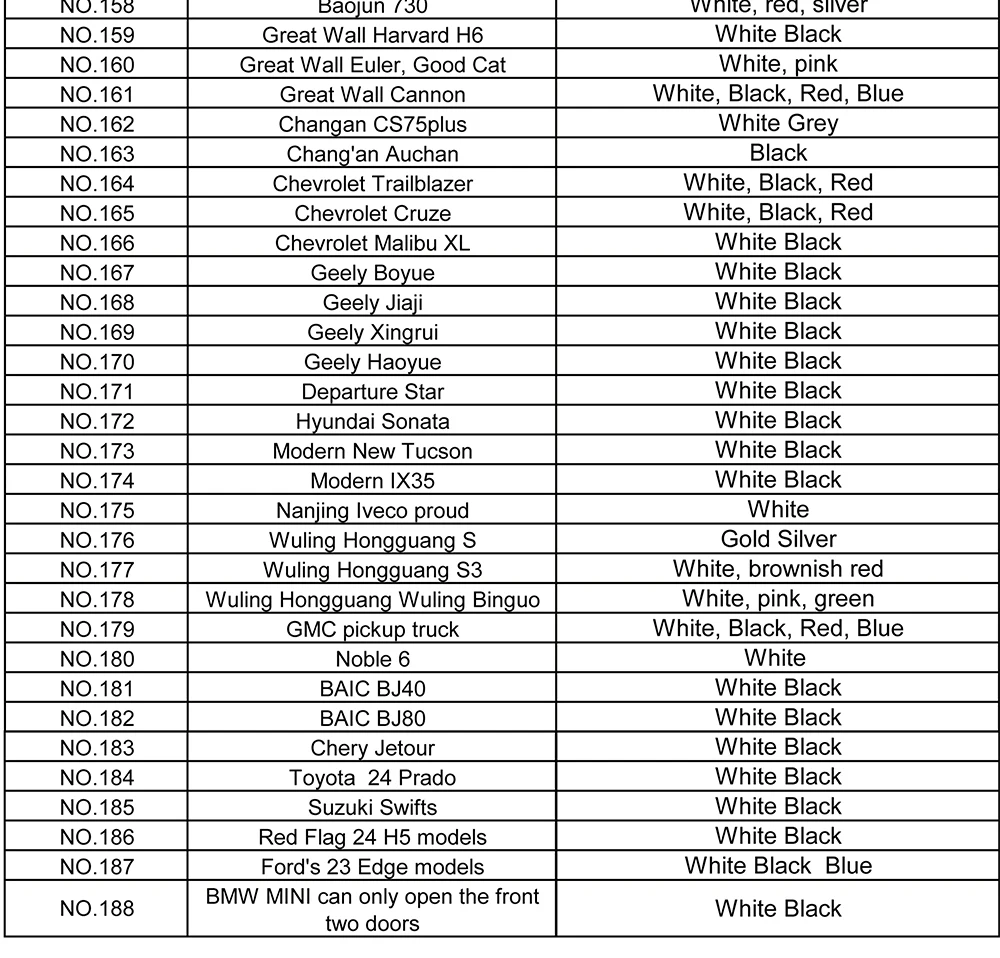

The system has 22 car graphics for you to choose from, and our database has 188 car models for you to choose from. The data details of the car models are as follows. If you need, you can contact our customer service to send you the corresponding car model software for upgrading. Our response time is within 12 hours. If you encounter any problems during the installation process, our technicians can provide online technical guidance to make your installation more reassuring
